Does the Active 20 show a DOP Value? Print

Modified on: Wed, 27 Mar, 2019 at 10:35 AM

Does the Active 20 show a DOP Value?

Dilution of precision (DOP), or geometric dilution of precision (GDOP), is a term used in satellite navigation and geomatics engineering to specify the additional multiplicative effect of navigation satellite geometry on positional measurement precision.

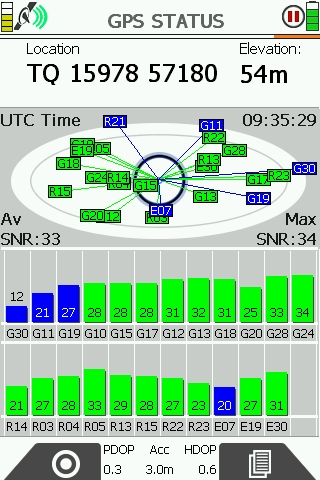

This information is shown on the Active 20 at the bottom of the the GPS Status Screen as shown below:

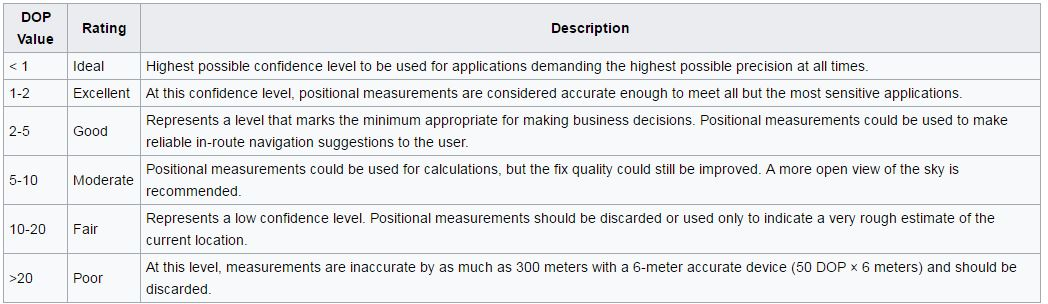

The meaning of these values are shown in the table here:

Categories: Active 20
